• Industry-leading resolving power and accuracy for low false alarm rate
• Fastest alarm detection
• Lowest cost of ownership
• Able to simultaneous detect explosives, drugs and pesticides
• Industry’s largest touchscreen with intuitive controls
• Embedded Linux platform with modern ARM CPU
Technology Dual Polarity Ion Mobility Spectrometry (IMS)
Operating Modes Explosives, Narcotics, Pesticides, or Explosives/Narcotics (dual)
Explosives Detected TNT, Tetryl, RDX, HMX, ETN, PETN, NG, EGDN, AN, UN and others
Narcotics Detected Amphetamine, Cocaine, Fentanyl, THC, Heroin and others
Pesticides Detected Carbofuran, Spiroxamine, Mevinphos, Methiocarb, Aldicarb and others
Analysis Time 6 seconds
Sampling Trace particle collection using sampling swabs
Sensitivity Explosives: picogram range
Narcotics: sub-nanogram range
Ionization Type Non-radioactive
Calibration Automatic internal
Alarm Method Visual graphic and configurable audio alarm
Connectivity 4 USB 3.0, Ethernet
Display 13.3” TFT LCD w/resistive touch
Operating System Linux
Dimensions 41 x 37 x 41 cm
Weight 12.6 kg (27.7 lbs)
Operating Temperature 0°C to +50°C
Operating Humidity 0 to 90% non-condensing
Printer External 80 mm thermal printer w/USB interface
Power 100-240 VAC, 450/60 Hz, 365W (Max)

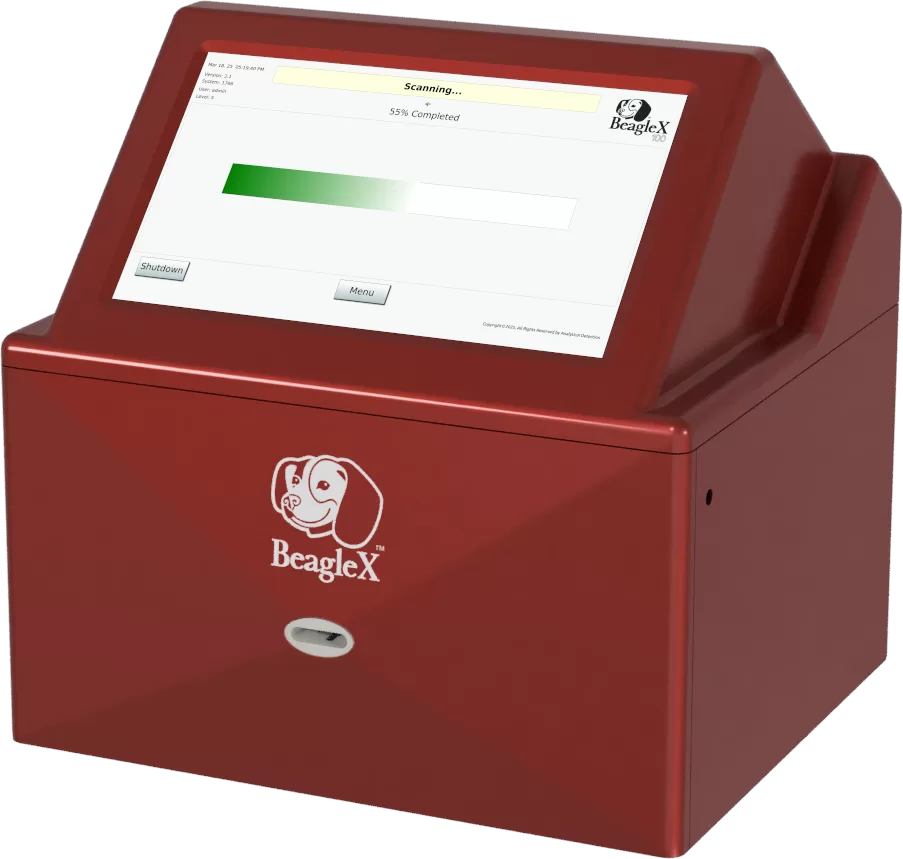

BeagleX™ 100 – Explosive and Narcotics Trace Detector
BeagleX™ 100 trace detection system is the first product from Analytical Detection LLC. Its development was driven by the goal of achieving superior resolving power and accuracy while reducing production and operational costs compared to existing commercial trace detectors in the explosives, narcotics, and illicit materials market. Through novel engineering methods and a ground-up design approach, the BeagleX™ 100 integrates advanced technologies to deliver a user-friendly, next-generation detection system that outperforms traditional ion mobility spectrometry (IMS) devices.
BeagleX™ offers all the features and intuitive operation expected from an IMS device, while delivering enhanced performance and a lower total cost of ownership. With a resolving power of up to 100 for targets of interest, it delivers rapid, highly accurate results in just 6 seconds—maximizing system throughput and operational efficiency.
Results are displayed on a bright, user-friendly 13.3” TFT LCD touchscreen—the largest in its class. Powered by Linux and running on a modern ARM processor, BeagleX™ ensures reliable, day-to-day performance in demanding environments.
